63/68cc Popular Model Earth Auger with Quick Stop Clutch Drum

* Main characteristic : Quick stop clutch /  Safty break system
* Popular package way : Sets package in one carton
-----1 PCS Earth auger machine
-----1 PCS Spring snubber
-----Each pcs of φ100/200/250mm Earth auger bits
* Professional earth auger bits :
HY-HJJQ-L  ; HY-HJZT-L ; HY-CX6-L ; HY-CX8-L ; HY-SD-8
* Mid-range earth auger bits
HY-HJZT-D; HY-ZT-D ;
* Economical earth auger bits
HY-PT-D
Availability:
Quantity:
  • HY-GD680-LK-829
  • HENGYUE
  • 01.03.05.06.008

With safty break system ,  suitable for 1 person operate model , 68cc gasloine enigne  Earth auger . φ25mm and φ12mm  tube ,V & Rectangle form to surround engine and gear case  . Base on this design , the handle could protect the engine and gear case ,safty for usere .The most popular package way is Earth auger with manual , tool kits and other attached accessories of the earth auger packaged in one carton/ color box .


Certificate : EC  EMC  EPA  EURO-II  EURO-V  ISO9001:2015


Engine model: 1E48F-II   2 strokeHandle design:φ25mm and φ12mm  tube ,V & Rectangle form
Engine power: 2.3kw / 8800±300 rpm/minTrigger :  luxury with automatic reset switch & safty arm
Displacement : 68CCVibration reduction system: 3 pcs rubber & 1 pcs metal
Max output speed:8800±300 rpm/minTransmission: Gear wheel ( 2 stages )
Fuel  tank capacity: 1600 mlGear case : With safty break system (Model - GC05-2015 )
Fuel  tank :  (Optional )Gear wheel metrial :20CrMnTi
        *Normal standard fuel tank Gear wheel structure : Helical (rounded corner)
        *With external balance air level  (Basic)Main gear wheel contact with output shaft : Spline
Fuel: Gasoline mix 2 stroke Oil (25:1)Output rate: 29:1  (Basic)
Clutch :  (Optional )Output shaft type : (Optional )
            * 2 Pcs hoof blocks (Basic)        * Spline
            * 4 pcs hoof blocks         * Cylinder φ20mm (Basic)

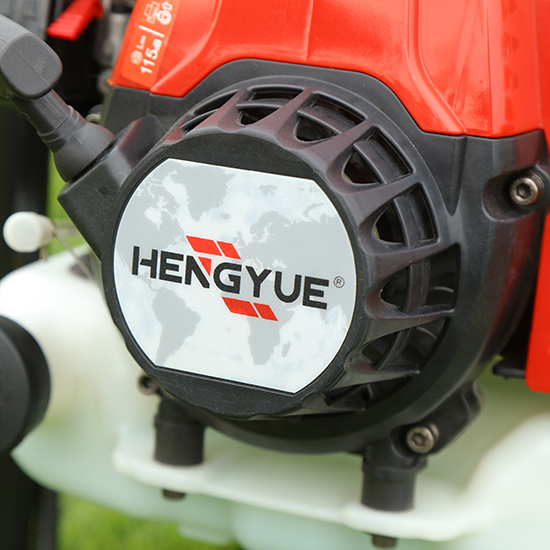

Starting systerm : Recoil        * Cylinder φ22mm
Starter:  (Optional )Max drive ability : ≤ φ 300mm  auger bit
        *Normal starterRecommend drive :≤φ 250mm auger bit

        *Supper easy starter: 2 pcs spings  & 1 pcs needle bearing

 (Basic)

Auger bit size :  φ40/60/80/100/150/200/250/300mm
Others info
G.W/N.W :13.05/11.23  kgPackage size : 46.5X42.5X41.5CM (Basic)
HS code :8467890000

Package way : Color box/ Carton (Basic) / with auger bits for sets by

 carton

Production time : 25-30 daysShipment port : NINGBO / SHANGHAI
Notice
1. Marked as (Basic) in the technical parameters is completely consistent with the product picture.
2. Marker as (Optional) . buyer can according to actually need to choose

*   This machine Max drive ability : ≤ φ 300mm  auger bit , but we recommend drive :≤φ 250mm auger bit . Becasue of  there are more diffirent model auger bits can match with this machine. so please check Auger bit in our website to choose the ideal model and size .  then let us know , we will make offer

*  Wellcome to contact us to talk about more detials , Such as OEM , ODM and so on
