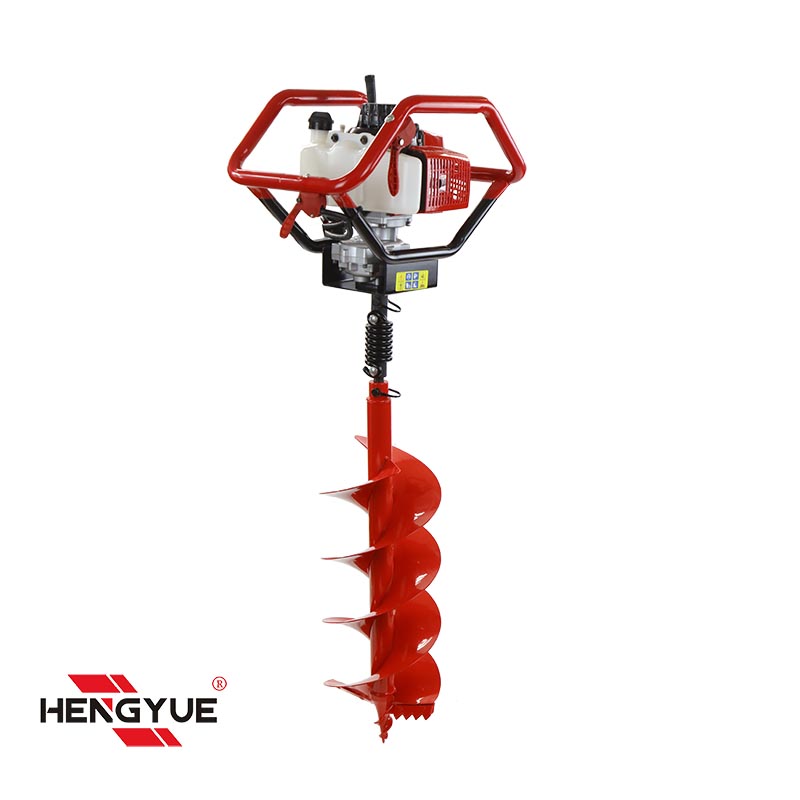

63/68cc 1 Or 2 Man Operate Earth Auger with Double Triggers

* Main characteristic : 1 or 2 man operate / Best-selling style
* Popular package way : Sets package in one carton
-----1 PCS Earth auger machine
-----1 PCS Spring snubber
-----Each pcs of φ100/200/250mm Earth auger bits
* Professional earth auger bits :
HY-HJJQ-L  ; HY-HJZT-L ; HY-CX6-L ; HY-CX8-L ; HY-SD-8
* Mid-range earth auger bits
HY-HJZT-D; HY-ZT-D ;
* Economical earth auger bits
HY-PT-D
Availability:
Quantity:
  • HY-GD680-LK-809
  • HENGYUE
  • 01.03.05.06.011

Suitable for 1 or 2 persons operate, 68cc gasoline engine Earth auger .  φ25mm tube , oval elbow & rectangle form handle design , also with dipping rubber on handle  .  The width of the handle is suitable for human mechanics, easy to control.  Especially the handle with 2 pcs triggers and ON/OFF button . easy for operate by 1 or 2 persons . The most popular package way is Earth auger with manual , tool kits and other attached accessories of the earth auger, packaged in one carton/ color box . Each pcs auger bit pakcage by each carton .  The second popular package way is 1 pcs earth auger machine with each pcs of auger bit φ 100, 200,250mm auger bit , spring reducer , 600mm extender package in one carton .

Certificate : CE  EMC  EURO-V  EPA  ISO9001-2015


Engine model: 1E48F-II   2 strokeTrigger : (Optional )
Engine power: 2.3kw / 8800±300 rpm/min

    * Simple with waterproof keep switch button , with 1 pcs ON/OFF (Bisc)

Displacement : 68CC

    * 2 Pcs luxury type triggers with automatic & waterproof

 switch button

Max output speed:8800±300 rpm/minVibration reduction system:1 pcs rubber & 1 pcs metal
Fuel  tank capacity: 1600 mlTransmission: Gear case
Fuel  tank : (Optional )      *( 2 stages / Model - GC03-2012 )  (Bisc)
        *Normal standard fuel tank       *( 2 stages / Model - GC01-2007 )
        *With external balance air level  (Basic)Gear wheel metrial :20CrMnTi
Fuel: Gasoline mix 2 stroke Oil (25:1)Gear wheel structure : Helical (rounded corner)
Clutch : (Optional )Main gear wheel contact with output shaft : Spline
       * 2 Pcs hoof blocks (Basic)Output rate: 29:1  (Basic)   /   10:1  / 5:1
       * 4 pcs hoof blocks Output shaft type :  (Optional )
Starting systerm : Recoil     * Spline
Starter: (Optional )     * Cylinder φ20mm (Basic)
        *Normal starter     * Cylinder φ22mm
        * Normal easy starterMax drive ability : ≤ φ 300mm  auger bit

        *Supper easy starter: 2 pcs spings  & 1 pcs needle

bearing (Basic)

Recommend drive :≤φ 250mm auger bit

Handle design: V & Rectangle form to surround engine

and gear case

Auger bit size :  φ40/60/80/100/150/200/250/300mm
Others info
G.W/N.W :13.1/10.95  kgPackage size : 41X41X37CM (Basic)
HS code :8467890000

Package way : Color box/ Carton (Basic) / with auger bits for

 sets by carton

Production time : 25-30 daysShipment port : NINGBO / SHANGHAI
Notice
1. Marked as (Basic) in the technical parameters is completely consistent with the product picture.
2. Marker as (Optional) . buyer can according to actually need to choose


This machine Max drive ability : ≤ φ 300mm  auger bit , but we recommend drive :≤φ 250mm auger bit . Becasue of  there are more diffirent model auger bits can match with this machine. so please check earth auger bit in our website to choose the ideal model and size .  then let us know , we will make offer


The offer is reference . Wellcome to contact us to talk about more detials , Such as OEM , ODM and so on
